Equipment Status

Equipment Status

Product Name standard Quantity manufacture company
General purpose lathe HL-580 1 Hwacheon Machinery
General purpose lathe HL-460 1 Hwacheon Machinery
General purpose lathe PROTEC-14 1 Korean Machine Tool
General purpose lathe HL-460 2 Hwacheon Machinery
Drilling machine NBTG 540 1 Southern
Drilling machine 1 Wuchang
Drilling machine PRD-1500 1 PM Tech Co., Ltd.
cutter N100 1
cutter TG-46 1 Eugene Machinery
Sandgi 1 Sanga Tech
Vertical milling HMV-1100 1 Hwacheon Machinery
CNC Vertical Milling MAKINO 10호 1 MAKINO
milling NSB-U1500 1 Namsun Gong
Jig boring J6-BD3 1 MITSYI SEIKI
Jig grinder 4GB 1 MITSYI SEIKI
Serration CNC HISUPER-2N 1 Hwacheon Machinery
Forming Grinding Machine YGS-46XA 2 Only machine
Forming Grinding Machine YGS-52A 1 Only machine
Discharger GNT500 1 UNITECH
Tool Grinding Machine C-40 1 Sung Kwang
Tool Grinding Machine C-40 1 Daewoo
Face grinding machine YGS-65A 1 Only machine
Face grinding machine HG-63A 1 Hwacheon Machinery
Face grinding machine YGS-1670A 1 Only machine
Serration Grinding Machine YGS-96A/s 1 Only machine
Serration Grinding Machine YGS-137SCYZ 1 Only machine
T Groove Grinding Machine 65VA 1 Only machine
Cylindrical Grinding Machine TGU-40 1 Tongil Heavy Industries
Cylindrical Grinding Machine TGU-35 1 Tongil Heavy Industries
Cylindrical Grinding Machine TGU-32 2 Tongil Heavy Industries
Cylindrical Grinding Machine GU-35H 3 Deokheung
Stamping machine FA-750 1 FAWOO
5-axis (mahjongg) 730-5X 1 MAZAK
Laser engraving machine MARK-F30 1 Homogeneous Laser
NC (horizontal) PUMA 350 1 Doosan Infra
NC (horizontal) QT 18N 1 Hyundai Wia
Milling Unit 2 HMTH-1100 3 Hwacheon Machinery
4-axis composite NC NLX-2500SY 1 DMG
NC (Vertical) PUMA V400 2 Doosan Infra
Machining Center VX-650/50 1 Hyundai Wia
Machining Center VX-500 1 Hyundai Wia
Machining Center VX-500/50 1 Hyundai Wia
Machining Center NHM-6300 1 Doosan Infra
Balance MH20BU 1 SCHENCK

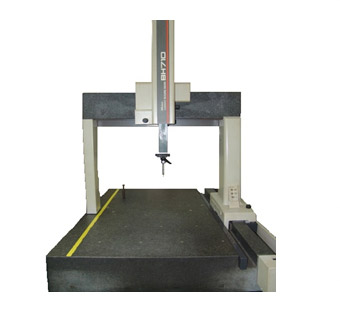

Passive 3D Measuring Machine

Equipment Name Usage Device number Control Number
3D measuring machine Each dimension and shape measurement 361-21 BH710
Instrument Specification
Measuring range X : 700mm
Y : 1000mm
Z : 600mm
Resolution 0.0005mm
Space precision 5㎛
Optimum temperature 20℃±1℃
Workpiece weight 600Kg
Calibration Interval 2 years

Equipment operation sequence

  1. Turn on the computer and let it become AIR supply.
  2. Set the constant value of the ball probe.
  3. Set the coordinates of the equipment.
  4. Measure after inputting a command suitable for the part to be measured.

Preparations

  1. Check the power supply of the equipment.
  2. Wipe the area of the product to be measured.

Precautions

  1. Use air cushion when transporting equipment.
  2. Make sure there are no foreign objects or dust on the slides on each shaft.
  3. Make sure that the workpiece does not hit the measuring product badly.
  4. Be sure to lock each axis when the measurement is completed.

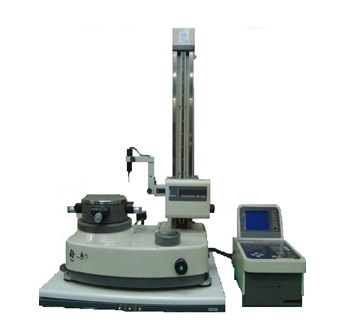

Roundness Tester

Equipment Name Usage Device number Control Number
Roundness Tester Shape 440101 RA-400
Instrument Specification
Rotation accuracy 0.02+3H/10000㎛
Revolutions 6rpm
Measuring mirror Φ300
Workpiece weight 30kg
Shanghai 480mm
Detection range ±300㎛
Measuring force 7~10gf
Diameter precision 1㎛/200mm
Parallel accuracy 3㎛/200mm

Equipment operation sequence

  1. Turn on the computer and let it become AIR supply.
  2. Set the constant value of the ball probe.
  3. Place the workpiece and set the product shake within the detector range.
  4. Measure after designating the command suitable for the shape value to be measured.

Preparations

  1. Check the power supply of the equipment.
  2. Wipe the area of the product to be measured.

Precautions

  1. The rotary table must not be forced without air supply.
  2. Make sure there are no foreign objects or dust on the slides on each shaft.
  3. Check the parallelism of the measurement table.
  4. Do not weigh more than 30 kg.

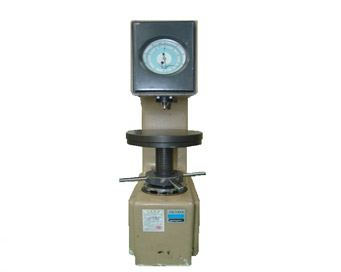

Rockwell hardness tester

Equipment Name Usage Device number Control Number
Rockwell hardness tester Hardness measurement 11289 AR-10
Instrument Specification
Measuring pressure 10kgf
Measuring range 0~100
Road way Automatic
Min division 0.5
Measured Area 115mm
Measurement height 140mm
weight 36kg

Equipment operation sequence

  1. 장비의 전원을 ON한다.
  2. 측정물의 표면을 깨끗이 한다.
  3. 측정물을 올려놓고 제품을 상승시켜 측정침을 접속시킨 후 바늘 2EA가 0에서 서로 만나게 한다.
  4. 하단에 원판을 누른다.

Preparations

  1. Check the power supply of the equipment.
  2. Wipe the area of the product to be measured.

Precautions

  1. The workpiece should stand straight and not inclined.
  2. The product shall not move during measurement.
  3. The surface of the workpiece should be clean and free of rust or slugs.

2D measuring instrument

Equipment Name Usage Device number Control Number
2D measuring instrument Each dimension measurement 6058 MT-600
Instrument Specification
Measuring range 610mm
Coverage 872mm
Measurable dimensions 0.0001m
Tolerance 1.2+L(mm)/1000
Measuring force 0.5N .. 1.8N
Operating temperature 10℃~40℃
Height 950mm

Equipment operation sequence

  1. Switch on the instrument. Press the On / Off key.
  2. Select the probe and set the setting gauge.
  3. Measure after selecting measurement mode.

Preparations

  1. Check the power supply of the equipment.
  2. Wipe the area of the product to be measured.

Precautions

  1. Do not operate the handwheel in a hurry.
  2. Use air cushion when moving equipment.
  3. When accumulating or replacing the probe, set it again using the setting gauge.

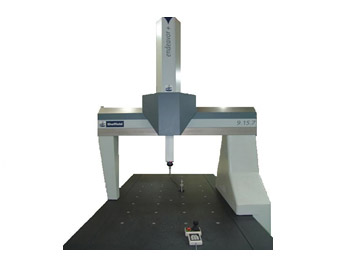

Automatic 3D Measuring Machine

Equipment Name Usage Device number Control Number
3D measuring machine Each dimension and shape measurement R0696-0507 9.15.7
Instrument Specification
Measuring range X : 914mm
Y : 1524mm
Z : 880mm
Resolution 0.0005mm
Space precision 5㎛
Optimum temperature 20℃±1℃
Measurement weight 600kg

Equipment operation sequence

  1. Turn on the power of the equipment.
  2. Calibrate the probe in each direction after home return. (If you replace the probe or if there is a collision, you must recalibrate.
  3. Measure after selecting command for measurement.

Preparations

  1. Check the power supply of the equipment.
  2. Wipe the area of the product to be measured.

Precautions

  1. Use air cushion when transporting equipment.
  2. Make sure there are no foreign objects or dust on the slides on each shaft.
  3. Do not allow the workpiece to hit the measurement control severely.
